Overview.



Next-gen.

A next generation dynamic bin weigh system, dyna is specifically designed to serve the weight measurement needs of front, side and rear loading waste collection vehicles.

Dependable.

Unlike all other known systems, dyna is virtually insensitive to variations in-machine behaviour, which ensures the system remains accurate despite the degradation of the host vehicle.

Precision.

​Using next generation advanced sensing and digital signal processing techniques, this system achieves extremely high precision weighing in spite of an aggressive working environment.



Non-stop.

Dyna precisely weighs a bin’s contents, without stopping, pausing or slowing the collection and emptying process.

It’s a little bit like magic.

Connected.

To simplify the integration of dyna to an existing in vehicle computer system, dyna is Bluetooth enabled and is configured and diagnosed via a convenient smart device app.

dyna is capable of being integrated with our hiiro base station permitting satellite or LTE reporting of the data to ours or any third party database.

Legal for Trade.

On certain lifter vehicle combinations, dyna has been demonstrated to be capable of meeting Australian and EU Legal for Trade precision, and has been designed from day one to meet the requirements for legal trade certification.

The dyna system will be available in both uncertified and certified variants.

We'd love to partner with you

Let’s talk about your particular vehicle requirements and determine the best solution for you.

Features.


  • Configurable processing algorithm with dynamic weigh window determination

  • Trigger source: internal, proximity, potentiometer or CAN message

  • Aviation grade acceleration sensing

  • Configured by Smart Device App via Bluetooth

  • Weight Data available via CAN and or RS232

  • 200,000 individual weight readings stored in a circular buffer for verification

  • Capable of operating in single, dual or triple mode

Specs.



Loadcell.

  • Dimensions: 176 x 125 x 75mm

  • Material: Stainless Steel

  • Mounting Fasteners: M16 x 8

  • Rated Load 2000kg

  • Safe Load Limit 4000kg

  • Approvals OIML to C3 (Y=10000)

  • IP Rating: IP68

Processor.

  • Dimensions: 85 x 110 x 70mm (including M12 connectors)

  • Material: Polycarbonate

  • Mounting Fasteners: M6 x 3

  • Interfaces: RS232, CAN, Digital I/O x 2

  • ​​Operating Voltage: 9-32V

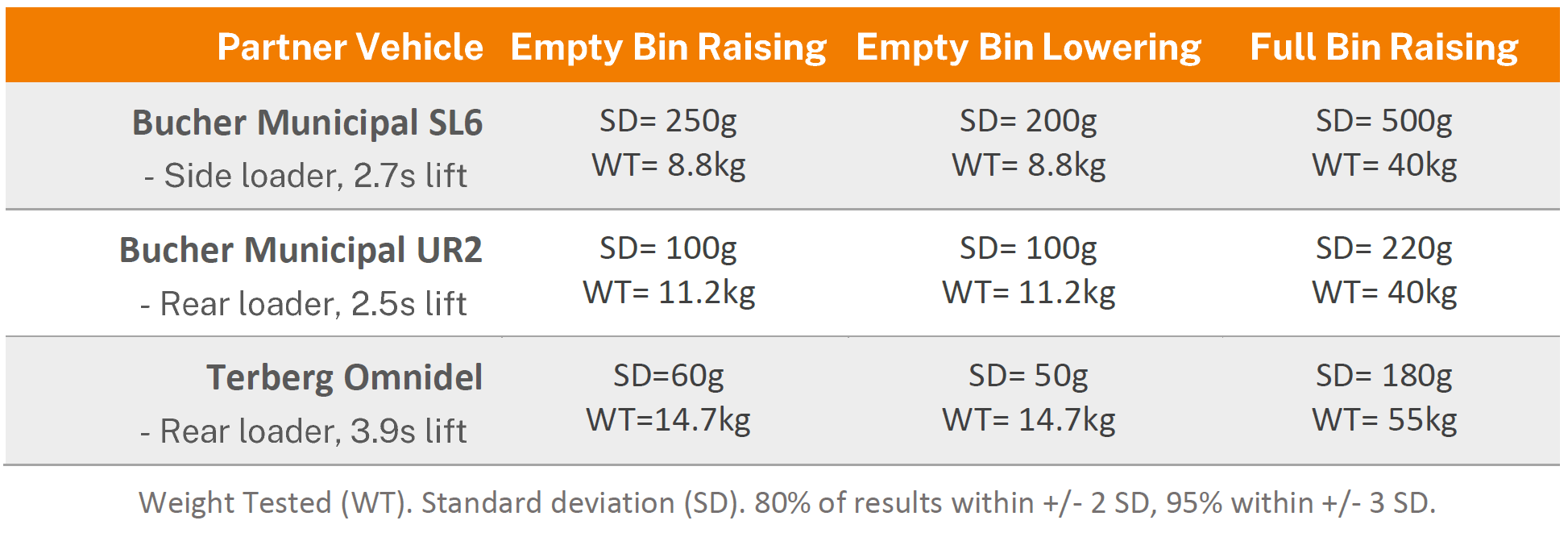

Performance.



Our partners trust dyna to provide accurate, dependable, consistent performance. We work closely with our partners to enhance the weigh performance of their vehicle’s lift system.

performance table.PNG

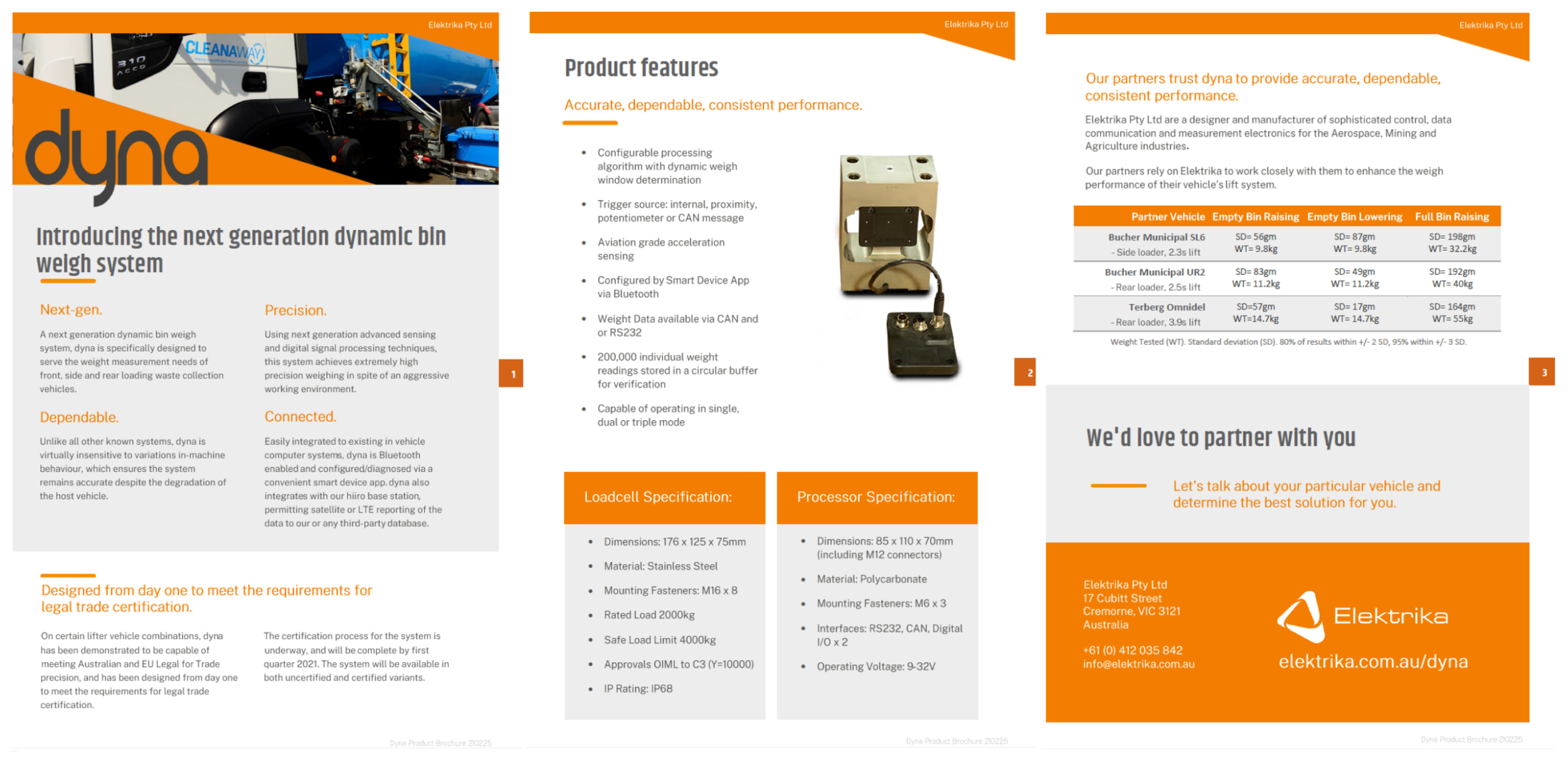

Product Brochure.
