Overview.
Tough.

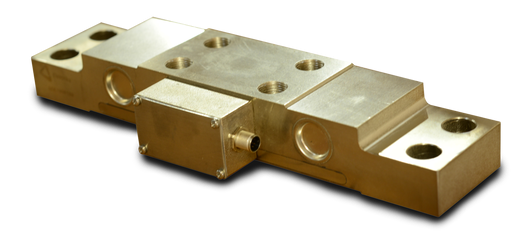

Using our custom designed and built load cell, bodyweigh load cells are insensitive to mounting variations, and provide accurate body weight measurements though their life cycle without recalibration.
Accurate.
Our unique bodyweigh load cells are each rated for 10t of loading and include integrated digital signal processors and conversion. They communicate to our data concentrator using reliable and robust CAN communication rather than low level and less repeatable analog signals. The resulting accurate weight data is available via CAN or RS232 formats, and one or more optional colour LCD displays.
Trusted.
Elektrika’s bodyweigh load cells have been in use on Bucher Municipal refuse vehicles since 2012, and is currently meeting the needs of hundreds of vehicles.
Features.
Individual signal processing inbuilt into each loadcell
Centre of gravity computation or individual axle weight indication capable
Line replaceable components without loss of accuracy
High resolution and repeatability
Tilt compensated
Usable with 4 or 6 load cells per system
Specs.
Dimensions: 330 x 70.4 x 40mm
Rated Load:10t
Overload Capability: 20t
IP Rating: IP67
Long Term Accuracy: +/- 40kg
Resolution: 100g
Power Supply: 11-32v
Interfaces: CAN, RS232-out
We'd love to partner with you
Let’s talk about your particular vehicle requirements and determine the best solution for you.
